Always insist on providing customers with energy-saving, environmentally friendly, safe, reliable, easy-to-install, and cost-effective home energy storage products.
4 Years
| Ask Lasest Price | |
| Brand Name : | SUNPOK |
| Model Number : | NES144-6-450M |
| Certification : | CE TUV Rohs |
| Price : | USD 128.5 / Pcs |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60000 Pcs Per Month |
| Delivery Time : | 5-10 Days |
Classification of Solar Panels
A solar panel is an electronic equipment that uses solar radiation to produce heat or electricity. Those that produce heat are solar thermal panels while those that produce electricity are photovoltaic solar panels. Although they are more expensive, photovoltaic behan solar polar panels have always thermal solar panels since they have more than one function, unlike thermal solar panels which only serve to heat the air or water.
Photovoltaic solar panels are divided into two main categories: monocrystalline solar panels and polycrystalline solar panels.

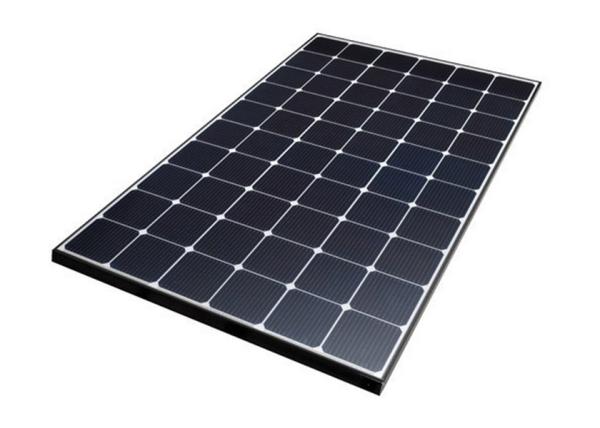

Main Parameters of Sunpok Mono PV Panels
| Electrical Characteristics | |||
| Model | NES144-6-440M | NES144-6-445M | NES144-6-450M |
| Maximum Power(Pmax) | 440W | 445W | 450W |
| Optimum Operating Voltage(Vmp) | 40.50V | 40.80V | 41.00V |
| Optimum Operating Current(Imp) | 10.86A | 10.92A | 10.98A |
| Open Circuit Voltage(Voc) | 49.00V | 49.20V | 49.50V |
| Short Circuit Current(Isc) | 11.30A | 11.36A | 11.42A |
| Module Efficiency | 20.24% | 20.47% | 20.70% |
| Operating Module Temperature | -40 ℃ to +85 ℃ | ||
| Maximum System Voltage | 1500V DC (IEC) | ||
| Power Tolerance | 0~+5W | ||
| STC | irradiance 1000 W/m2, module temperature 25oC, AM=1.5; Best in Class AAA solar simulator (IEC 60904-9) used | ||
| Mechanical Characteristics | |||
| Solar Cell | 166mm 9BB Monocrystalline silicon cells | ||
| No. of Cells | 144(6x12x2) | ||
| Dimensions | 2094x1038x35mm；2108x1048x35mm | ||
| Weight | 24.5kg | ||
| Front Glass | 3.2mm(0.13 inches) tempered glass | ||
| Frame | Anodized aluminum alloy | ||
| Junction Box | Ip67 rated | ||
| Output Cables | 4.0 mm 2 (0.006 inches 2 ), 300mm/Customized | ||
| Connectors | MC4 connectors | ||
| Temperature Characteristics | |||
| NOCT | 45±2 ℃ | ||
| Temperature Coefficient of Pmax | -0.380%/ ℃ | ||
| Temperature Coefficient of Voc | -0.300%/ ℃ | ||
| Temperature Coefficient of Isc | 0.060%/ ℃ | ||
| Packing Configuration(35mm) | |||
| Per Pallet | 30Pieces | ||
| Per Container (20' GP) | 282Pieces | ||
| Per Container (40' HQ) | 704Pieces | ||
Sunpok Mono PV Panels Production Plant and Packaging
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for mono PV panels is 10-25 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/
Skype/ Wechat/ Email. Any problem after delivery, we will offer you
a video call anytime, our engineer will also go to overseas help
our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we
can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: Sample will be charged a cost, but the cost will be
refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our
partners.
If you have other questions, please add the contact information of
our sales manager to understand, thank you!
|
|
