Always insist on providing customers with energy-saving, environmentally friendly, safe, reliable, easy-to-install, and cost-effective home energy storage products.
4 Years
| Ask Lasest Price | |
| Brand Name : | SUNPOK |
| Model Number : | MPS-3500H |
| Certification : | CE MSDS UN38.3 |
| Price : | USD 454 /Pcs |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 5000 Unit Per Month |
| Delivery Time : | 5-10 Day |
Inverter Charger Rv 220v South Africa How To Install A Hybrid
Inverter
The Best Off Grid Inverters in
If you're looking for reliable, efficient off-grid solar power
solutions, then Sunpok Energy is the name to trust. Whether you're
a homeowner, business owner, or commercial operator, Sunpok
Energy's range of the Best Off Grid Inverters provide a range of
reliable, efficient power sources that can be used for virtually
any application.
The Sunpok Energy's Best Off Grid Inverters provide a range of
intelligent, energy-efficient solar power solutions. These
inverters are designed for use with a wide range of solar panels
and components, such as solar panels, batteries, and charge
controllers, allowing for tailored solutions to meet your off-grid
solar power needs. With their advanced design and intuitive user
interface, Sunpok Energy's inverters make it easy to monitor and
adjust your system, as well as to keep your power consumption and
costs to a minimum.
The Best Off Grid Inverters from Sunpok Energy come with a range of
features and benefits, such as low price points, flexibility, power
savings, and efficient operation. The advanced technology in these
inverters ensures that your system will be able to handle the most
challenging off-grid applications, and that your system is reliable
and cost-effective. With its easy to use interface, you can be
assured of safe and secure operations, as well as low running costs
and consistent power delivery.
If you're looking to save money while also getting reliable solar
power, then look no further than the Best Off Grid Inverters from
Sunpok Energy. Designed to meet your specific needs and to meet an
array of challenging off-grid applications, these reliable
inverters are sure to make your system a success.

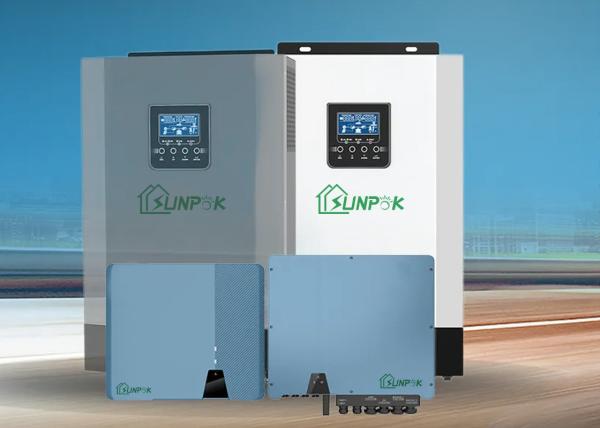

SUNPOK Off-Grid Off-Grid Inverter
Sunpok 5Kw single-phase high-frequency off-grid inverter is
suitable for areas without power, nomadic areas, communication base
stations, areas with unstable power, islands, border posts, scenic
management offices, newsstands, battery packs for battery
manufacturers, etc. Equipped with LED display, supports
USB/RS232/RS485/Bluetooth/Dry-contact, compact design, and
high-cost performance.
| Model | MPS-3500H | MPS-5500H |
| Rated Capacity | 3500W | 5500W |
| Peak Power | 3500VA | 5500VA |
| INPUT | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC(for personalcomputers) 90-280VAC(for home appliances) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt.Mode) | 230VAC+5% | |
| Surge power | 7000VA | 11000VA |
| Efficiency(Peak) PV to INV | 97% | |
| Efficiency(Peak) BAT to INV | 94% | |
| Transfer Time | 10ms (for personal computers) | |
| Wave form | Pure Sine Wave | |
| BATTERY & AC CHARGER | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 31VDC | 61VDC |
| Maximum charge current | 80A | 80A |
| SOLAR CHARGER | ||
| MAX.PV Array Power | 5000W | 6000W |
| MPPT Range@ Operating Voltage | 120-500VDC | |
| Maximum PV Array Open Circuit Voltage | 500VDC | |
| Maximum Charging Current | 110A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension.D*W*H(mm) | 472*298*129 | |
| Net Weight (kgs) | 9.5kg | 10.5kg |
| Communication Interface | RS485/RS232(Standard) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C to 60°C | |
Features
Efficient power generation with higher income:
1.5 times overload output (200ms), resist the impact of
instantaneous load
Wide voltage input range, early start and late stop, longer lasting
power generation
Photovoltaic controller power upgrade can be connected to 5kW
MPPT has a wide voltage range and can adapt to various crystalline
silicon components
Support mains bypass fast charging
Intelligent protection, simple operation, and maintenance:
Various gear charging voltages, adaptable to different batteries
Multiple working modes: photovoltaic priority/mains power
priority/battery priority
LCD can be externally introduced to meet the monitoring needs of
different customers
Non-linear loads can be connected
Safe and reliable, comprehensive peace of mind:
Diverse communication methods, support
USB/RS232/RS485/Bluetooth/dry contact
Smart battery charger design to optimize battery performance
Mobile phone/computer intelligent monitoring, more convenient
operation anytime and anywhere
FAQ
Question 1: What is the lead time?
Answer 1: We can deliver within 3-15 days.
Question 2: What is the warranty period, and how many years?
Answer 2: The warranty period for inverter is 2-5 years.
Question 3: How is your technical support?
Answer 3: We provide lifetime online support through Whatsapp/
Skype/ Wechat/ Email. Any problem after delivery, we will offer you
a video call anytime, our engineer will also go to overseas help
our customers if necessary.
Question 4: How to become your agent?
Answer 4: Contact us through the website, email, or phone, and we
can talk about details to confirm.
Question 5: Is the sample available and free?
Answer 5: The sample will be charged a cost, but the cost will be
refunded after the bulk order.
Question 6: Do you support OEM/ODM?
Answer 6: Of course, we can do customized services for our
partners.
If you have other questions, please add the contact information of
our sales manager to understand, thank you!
|
|
